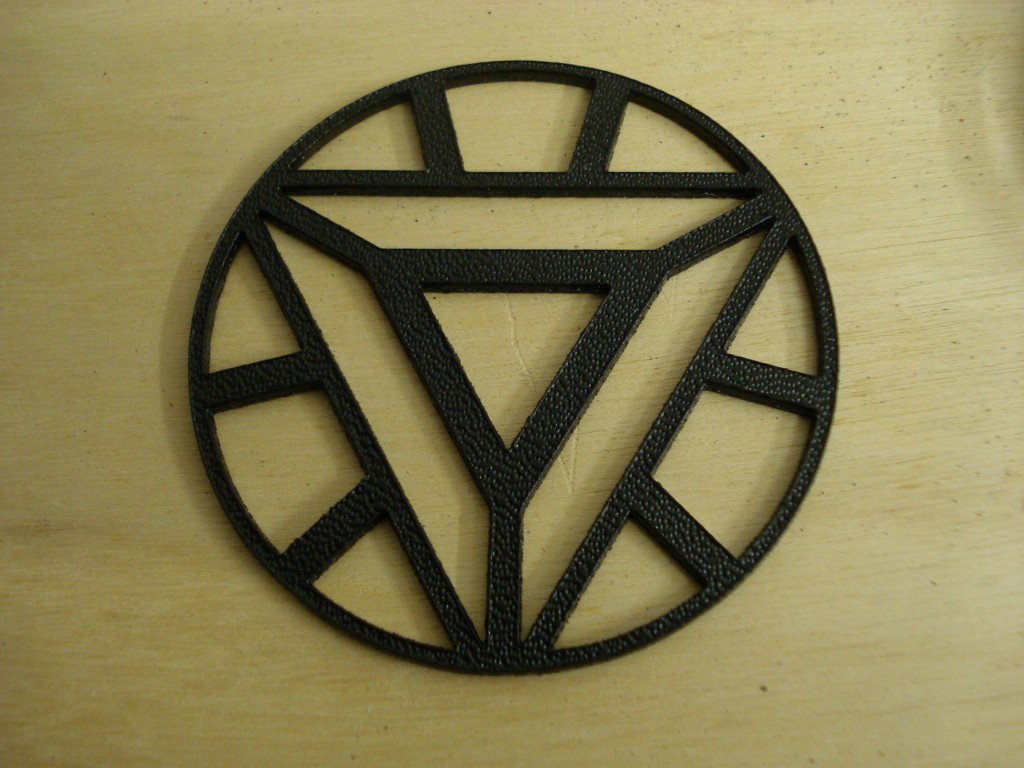

MkV Arc Reactors

-

I fished out some really old files today so I could cut out the first set of MkV disks on my laser cutter. Previously I've had these professionally done by a laser company in Kettering. Again this is the first time I'm releasing the files though (dxf here)
