Panel Joinery 29

-

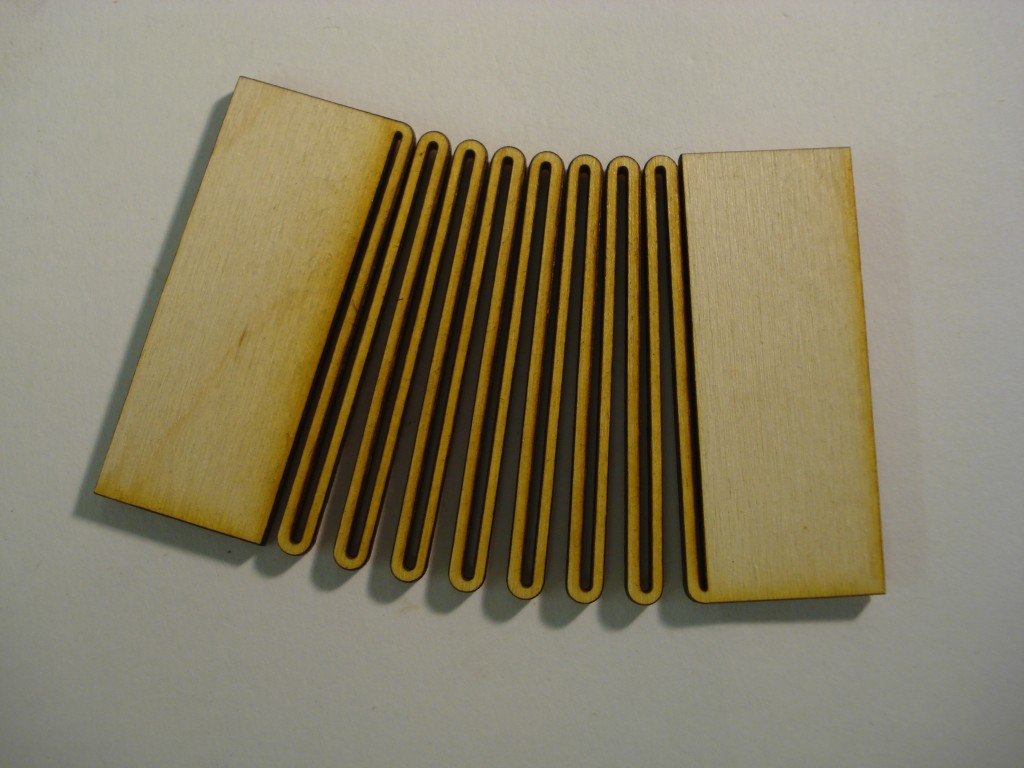

A different take on the living hinge, one single continous line allows this to be bent in different ways to the other hinges I've made before.

You'll all be pleased to know that this is the last cut of the panel joinery article, it's been great for me to play catch up with. There will be one more post as a round up but I'm working on something clever for that so I hope you'll appreciate it.
271/283
