Large Ring Lift

-

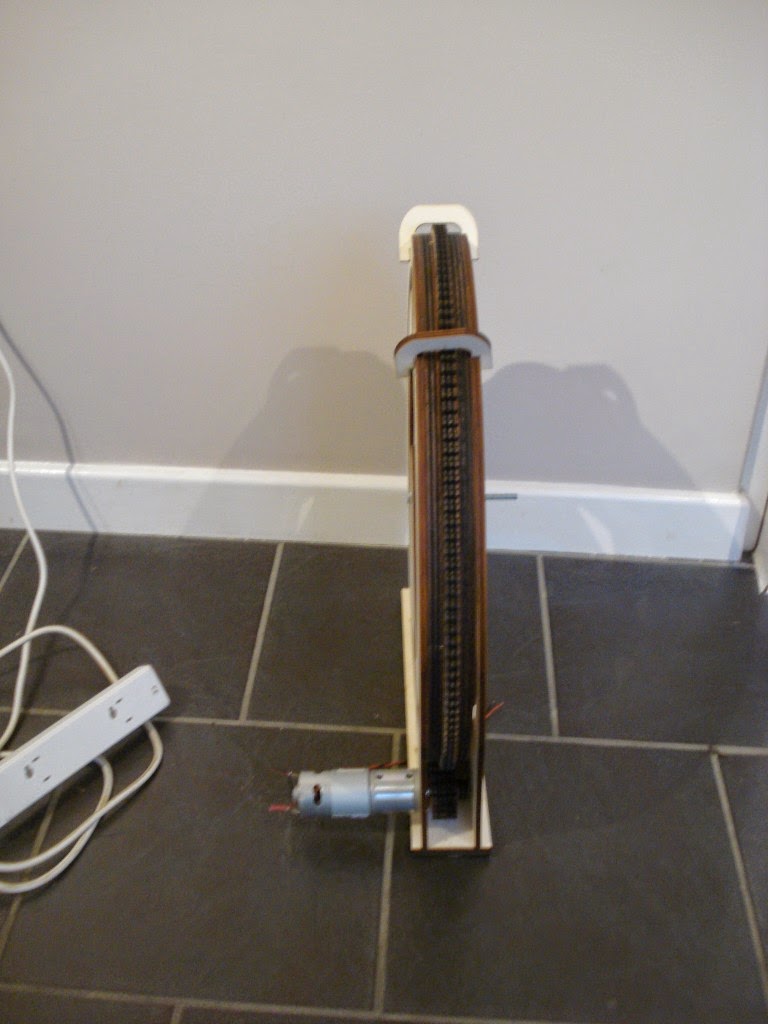

After seeing my massive marble machine ring lift I was asked to replicate the lift only to make a lifting mechanism for golf balls. This one needed to be motorised, slightly larger but didn't need the spiral so I basically ended up redrawing the whole thing. There was a minor issue with the drive gear shaft shearing off so I replaced the gear with an acrylic version and it seems to be running fine. It works well though and I can't wait to see the rube goldberg it's going to be used in.
