Plate Stand

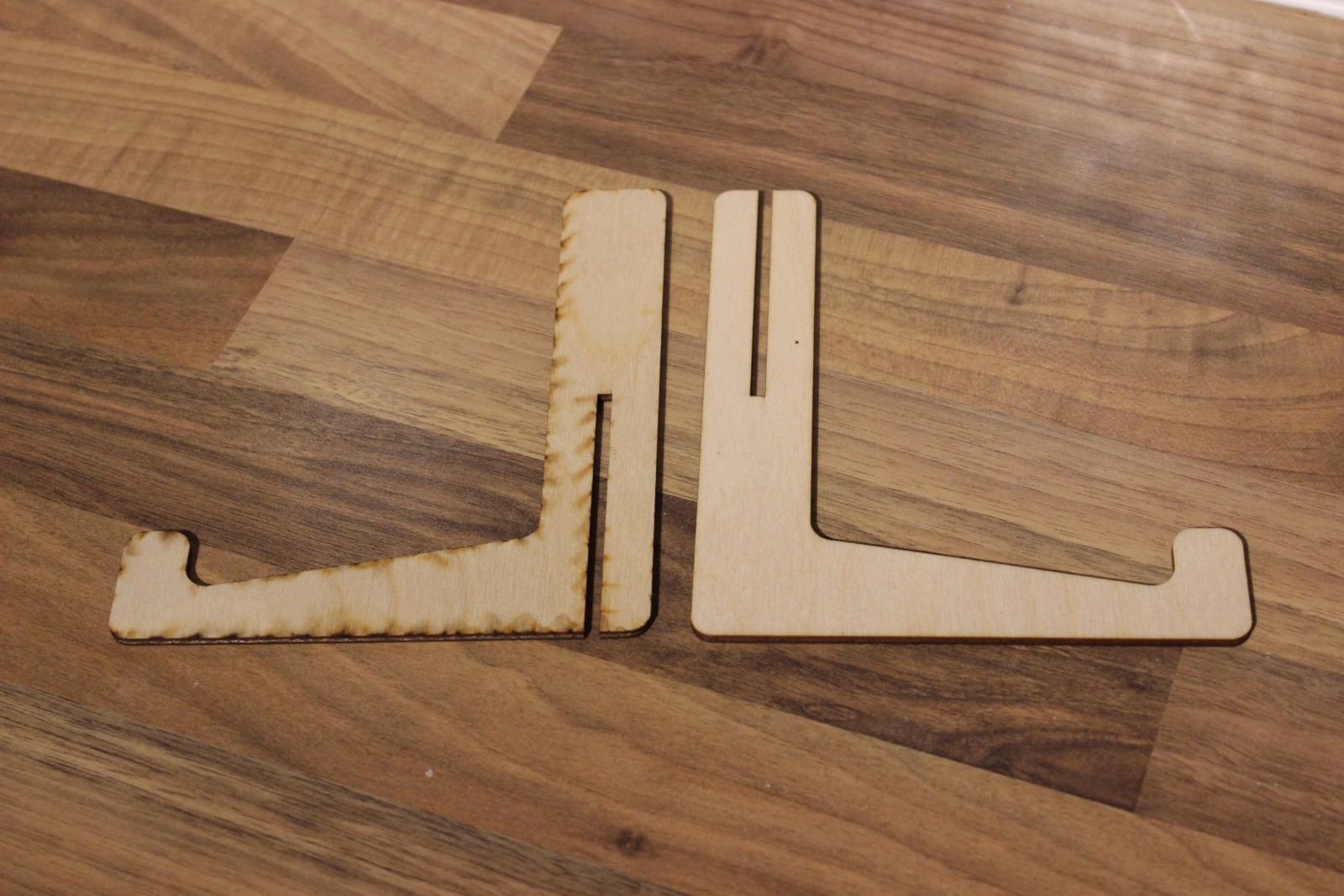

We recently inherited this nice plate and it needed a stand for display. I drew one up quickly with the laser and voila. It's a little bit loose on the joint for the plywood but it's perfectly functional as you can see. (svg here)
Wiring the Ruida Controller
The RDC6442G controller from Ruida This is going to be quite an image heavy post describing the rewiring needed to convert between the Leetro controller and the Ruida controller. It is also pretty straight forward on the old Just Add Sharks laser cutters because all of the wires are clearly labelled. The controller was prepared in the previous step in order to make this conversion process as smooth as possible. The Leetro (Pad03) panel on the left and the Ruida panel on the right The view from inside the laser looking up at the control panel The control panel is an easy place to start, both panels have just a single cable that runs down to the controller, both panels are a very similar size, with the Ruida panel being slightly smaller underneath so it will fit in the hole left behind easily. The Pad03 panel clips into place so you'll need to reach up inside the machine to work the clips loose. The cable runs down the inside of the laser and is cable tied onto mounti
