2x2 Useless Machine

-

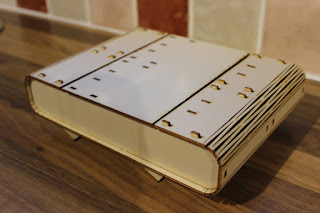

Another very overdue Maker Central project, I wanted something for people to fiddle with on display at the exhibition and I've always wanted to jam a load of useless machines together into the same housing so it was a perfect opportunity. I took my standard useless machine and stretched the skin in both directions to accommodate four mechanisms.


This box was intended as a quick prototype for a larger 5x5 useless machine, the principles were proven but the box wasn't entirely functional. The upper row of mechanisms had nowhere to brace across in the bottom of the box and I forgot to make any wiring holes between the internal panels. It sat unloved on my bench until a tidy up this week when I realised I should dismantle the 5x5 machine and sell the individual mechanism. I resurrected this 2x2 as a much more compact memory of the project. The additional panel across the bottom is simply glued in place (rather than the hook system of the usual skin) but at least it has all the bracing points in the correct places. I make so much stuff that I try not to get sentimental about things when they have to go but it is nice to keep a few smaller things like this around.
