Maker Central Race Track

-

Maker Central happened in May last year, I used to enjoy travelling to all the maker faires and creating new and interesting projects for each of them. I did the same for Maker Central but for some reason never blogged about it. I'm clearing out my photo backlog so here's a few things from May.

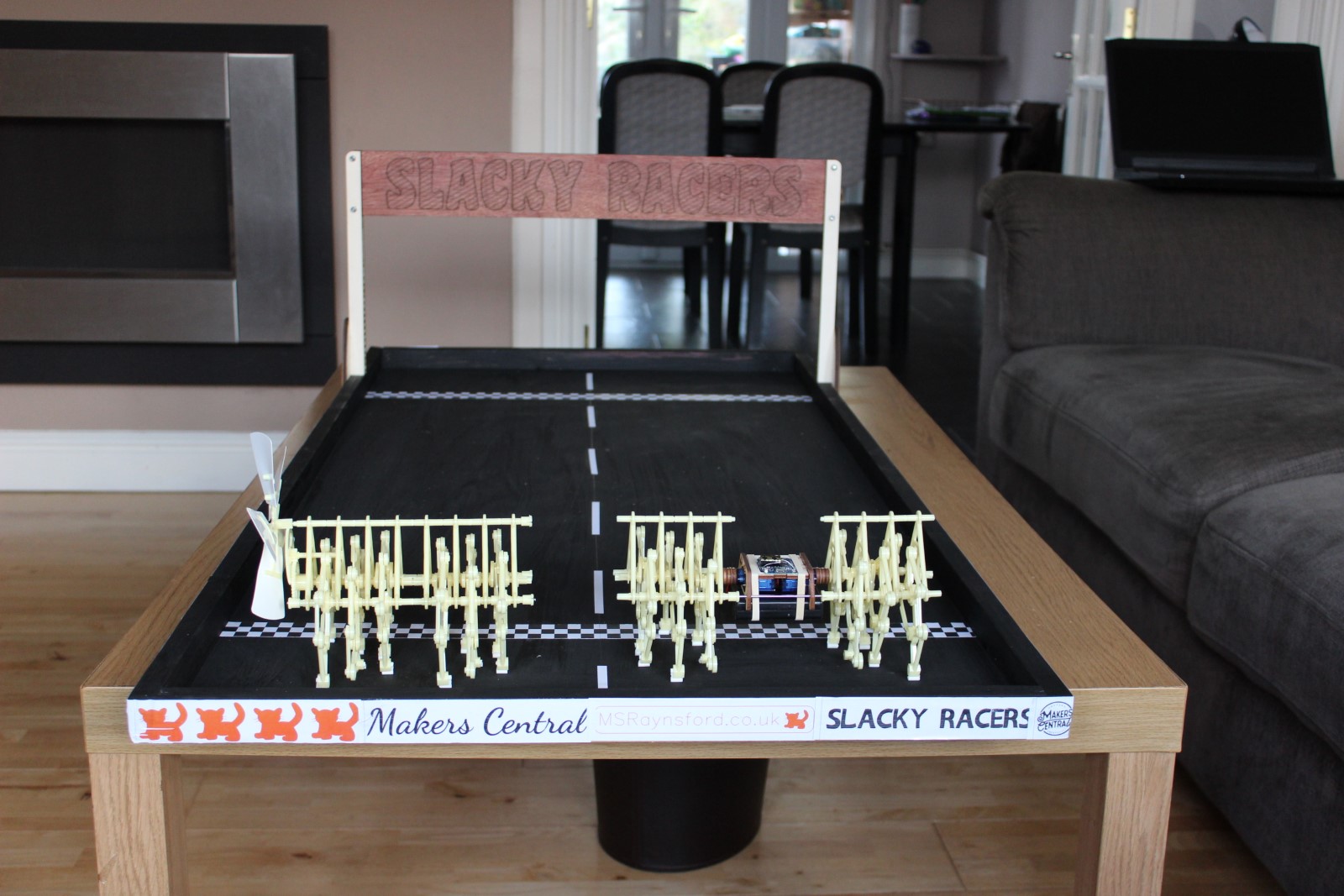

Because I was selling my remote controlled strandbeest kits I thought it would be a good idea to have a racetrack where people could try to blow the sail powered kits faster than the motor powered kits. Hacky Racers were also exhibiting at the event so I thought it would be fun to but a 'slacky racers' theme on it for people who didn't go to the effort of making a full sized vehicle. I expect this may make another appearance at future events, it's easy enough to rebrand due to the sticky labels and sellotape used around the edge.
