Shed Complete

-

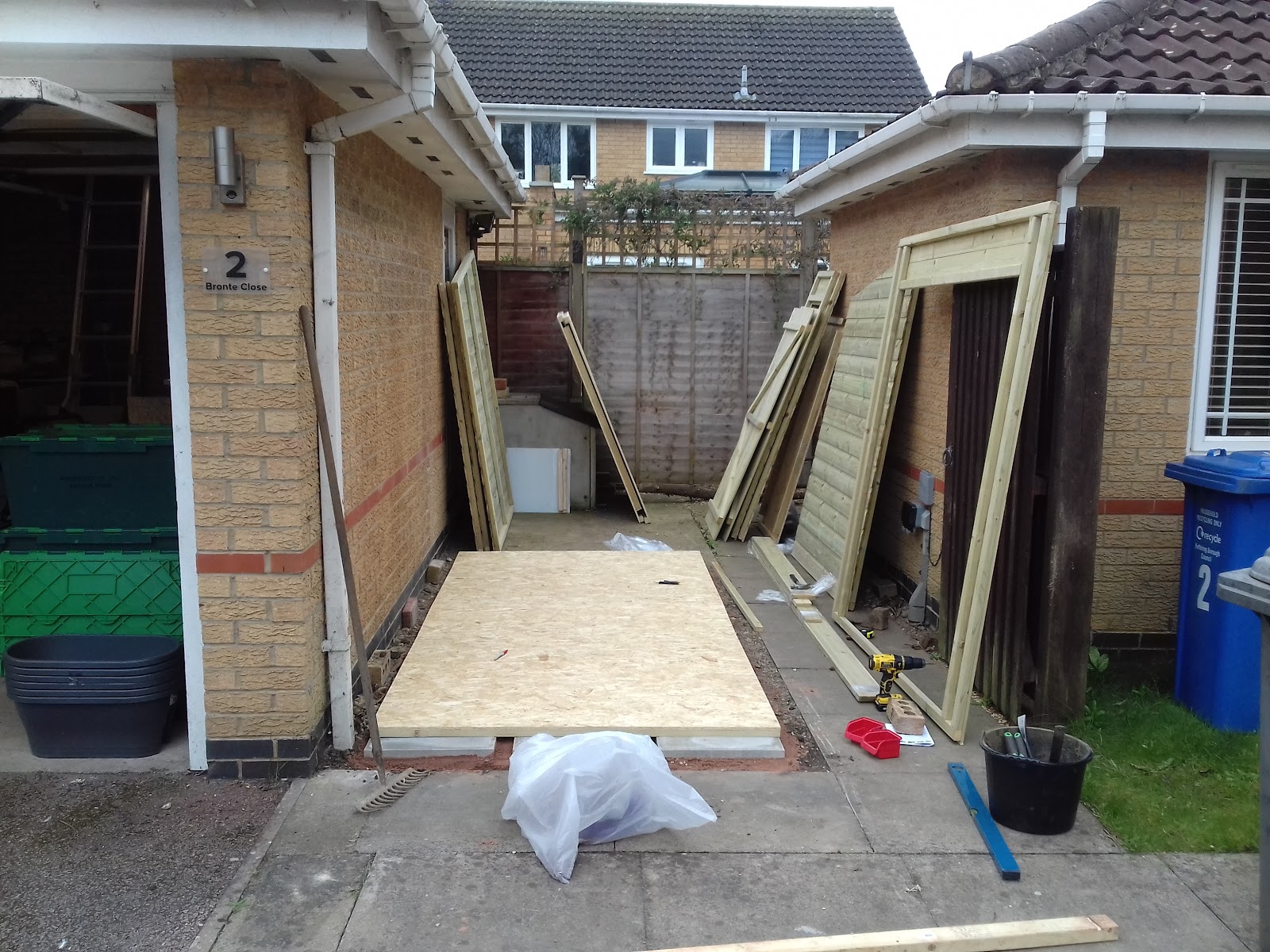

The replacement shed is now complete and ready to be populated full of stuff from the workshop. It took much longer than expected this week to prepare the slab, put the shed together, paint the whole thing and then repair the gate/fence to close the gaps back up again. The most significant improvement is a guttering on the wall of the garage. Rain now drips off the shed roof and down the garage drain instead of making the garage itself damp.

It will probably need so further adjustments when I get the laser cutter up and running again. It's my intention to vent into the gap behind the shed so that the neighbours can't hear it when it's running.
