Brooxes Hangups

-

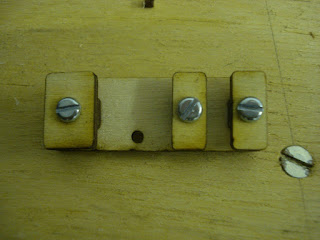

Dominic is away from his laser for two weeks so he asked if I could make some Brooxes hangups for him, so I did. They're for hanging cameras onto kite strings. A couple of M3 bolts through the wood and a healthy smattering of glue means that it shouldn't come apart. (svg here)
