Quartz Fail

-

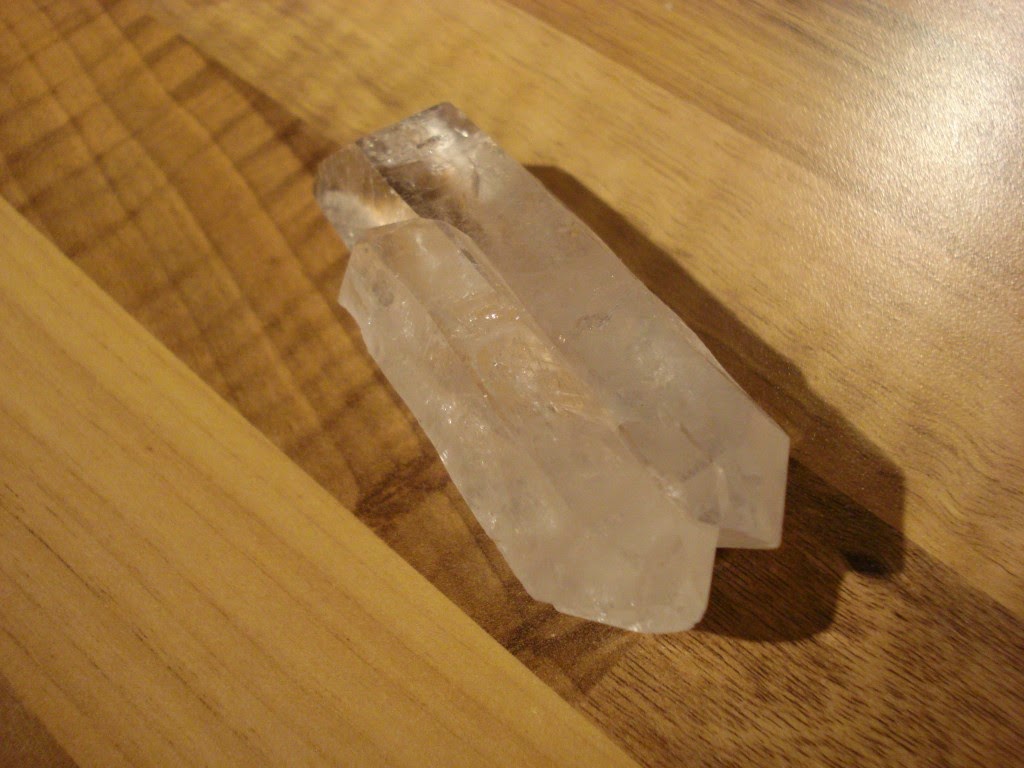

I'm always happy to try new materials that people send me to see if they can be engraved and this time it was the turn of Quartz crystals. Slate, Sandstone and Marble all engrave so there was always a chance this could work and as you can see from the image it wasn't a complete failure but the quartz was chipping away under the laser beams so it makes for some very rough edges to the engrave. It's not good enough to warrant doing again but at least it has been tried now.
