Bigger Treasure Chest Lid

-

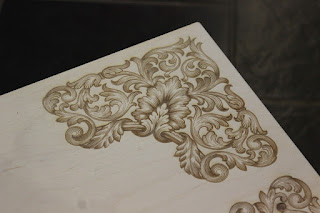

Time became a bit of an issue this week so I went for a very simple lid that rests on top of the box, made from 6mm birch ply it's very sturdy.  I turned up the engraving quality to make sure the thin lines on the design came out correctly. 4 little feet underneath locate into the trays and stop the lid from sliding off sideways. The whole thing is sturdy enough to sit on.
