Deep Engrave Plastic

-

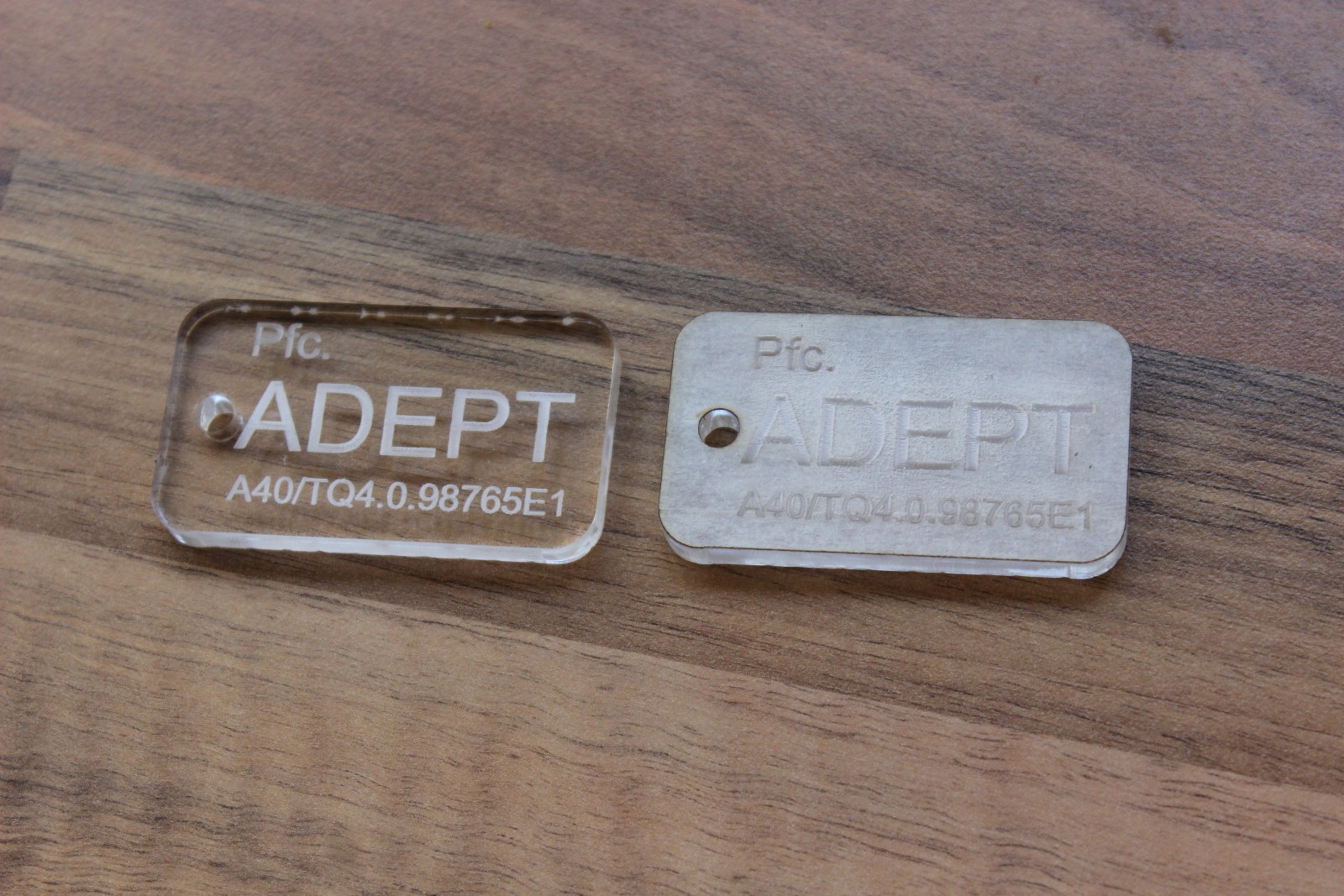

Sam wanted me to cut some acrylic parts for her but she wanted them with a really deep engrave. The trouble with deep engraving on plastic is that it throws up a lot of dust which stains the work and fills the etch. I tried to reduce this staining by masking the area with tape first. I think it certainly reduced the amount of staining but I could have increased the power to get a much deeper etch.
