Oak Veneered MDF Rings

-

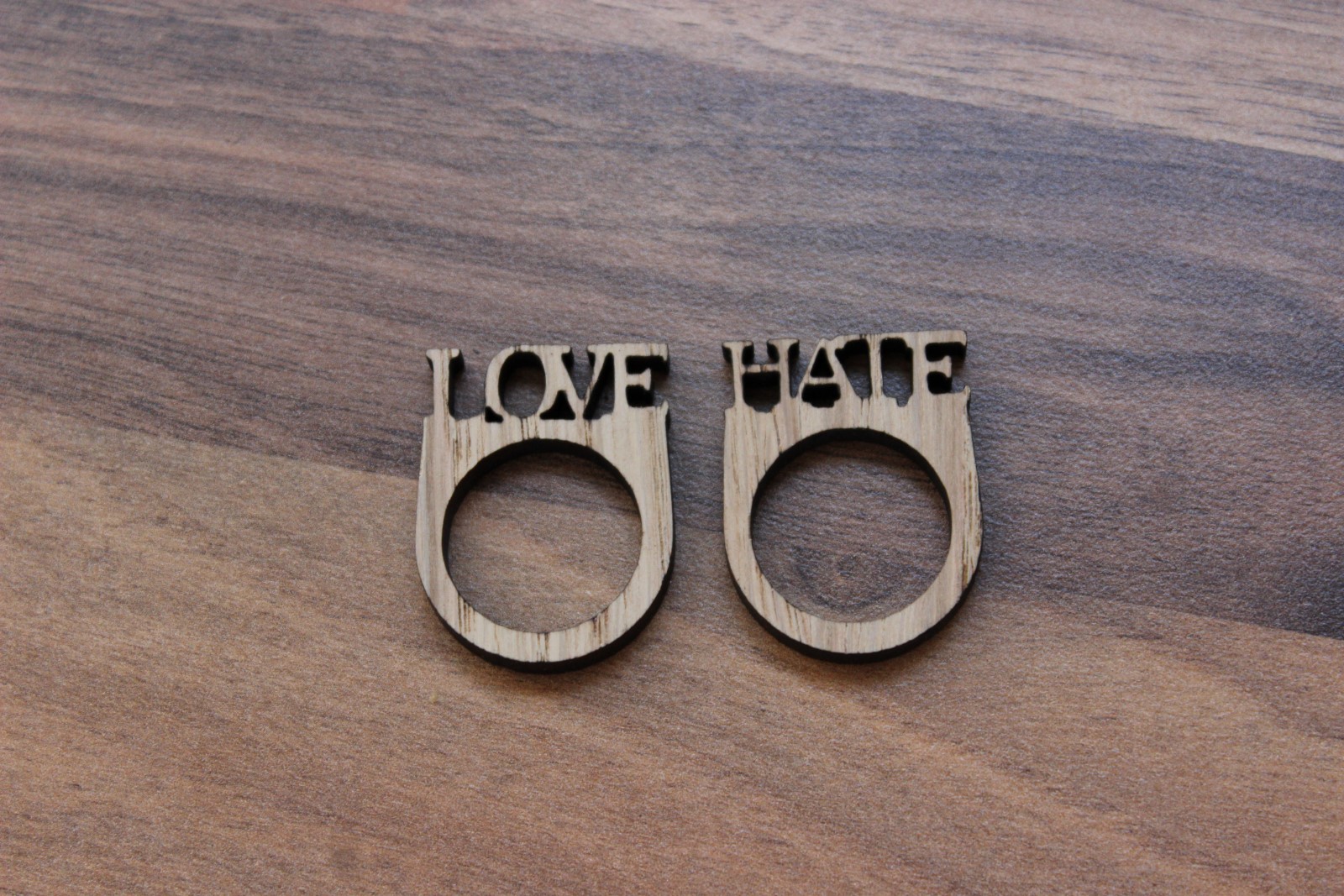

I also cut some rings for Sam at the same time as the perspex. These were cut from oak veneered mdf, like all mdf it creates a lot of smoke when it cuts and that can stain the surface. Masking it is still one possible solution but at least with veneers you can sand them smooth and clean again.


Sam also needed some claps for necklaces so we squeezed those into the material too, it's a very clever laser cut solution and we all know everything should be lasered if at all possible.
