Entanglement Puzzle 1

-

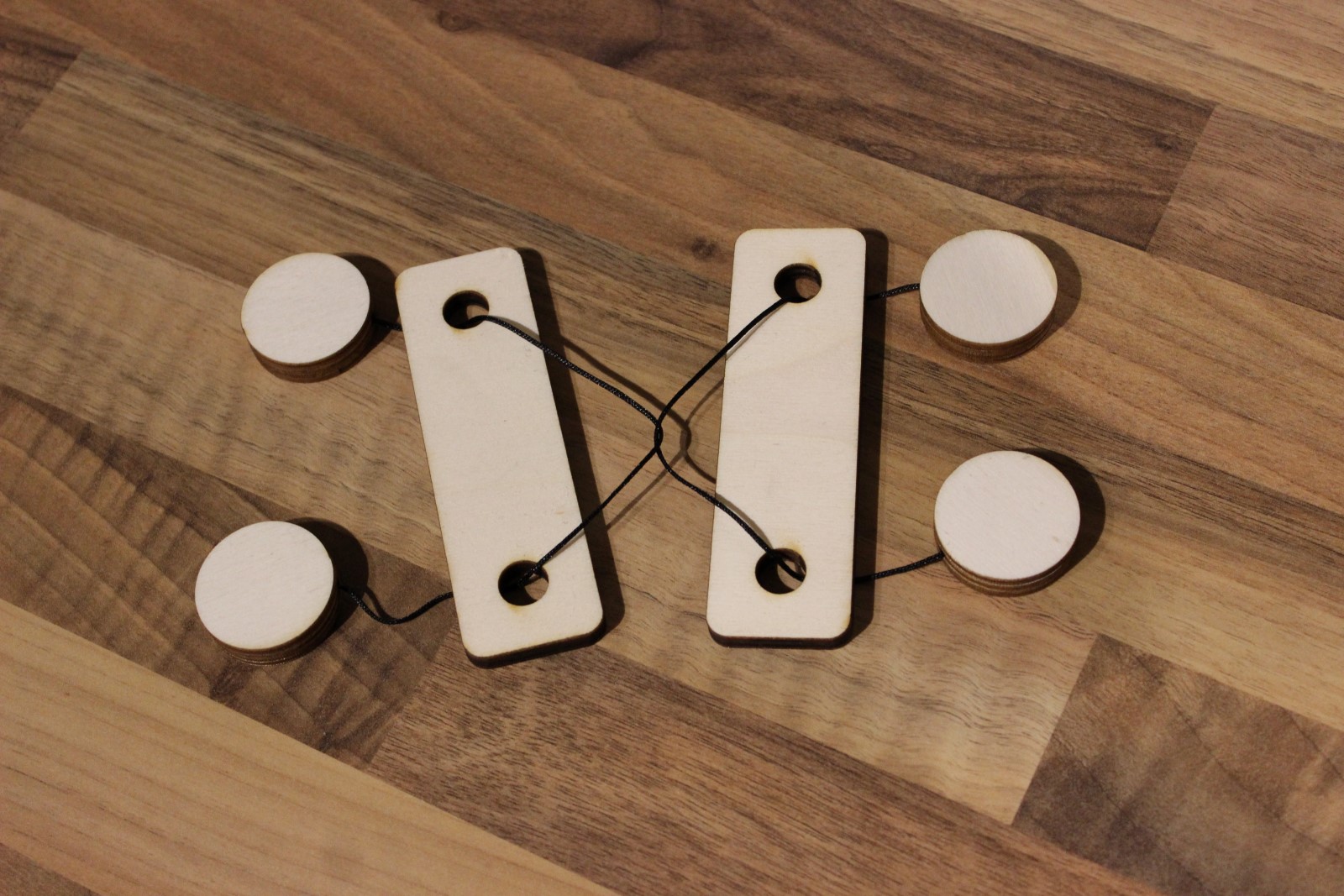

I made this simple little entanglement puzzle, they seem to appear around Christmas time and with some craft fairs coming up I was wondering if I should add some toys to my selection. It could ideally do with thicker string but it's functional and sturdy. The aim of the game is to separate the two parts. (svg here)
