Rubber Stamps

-

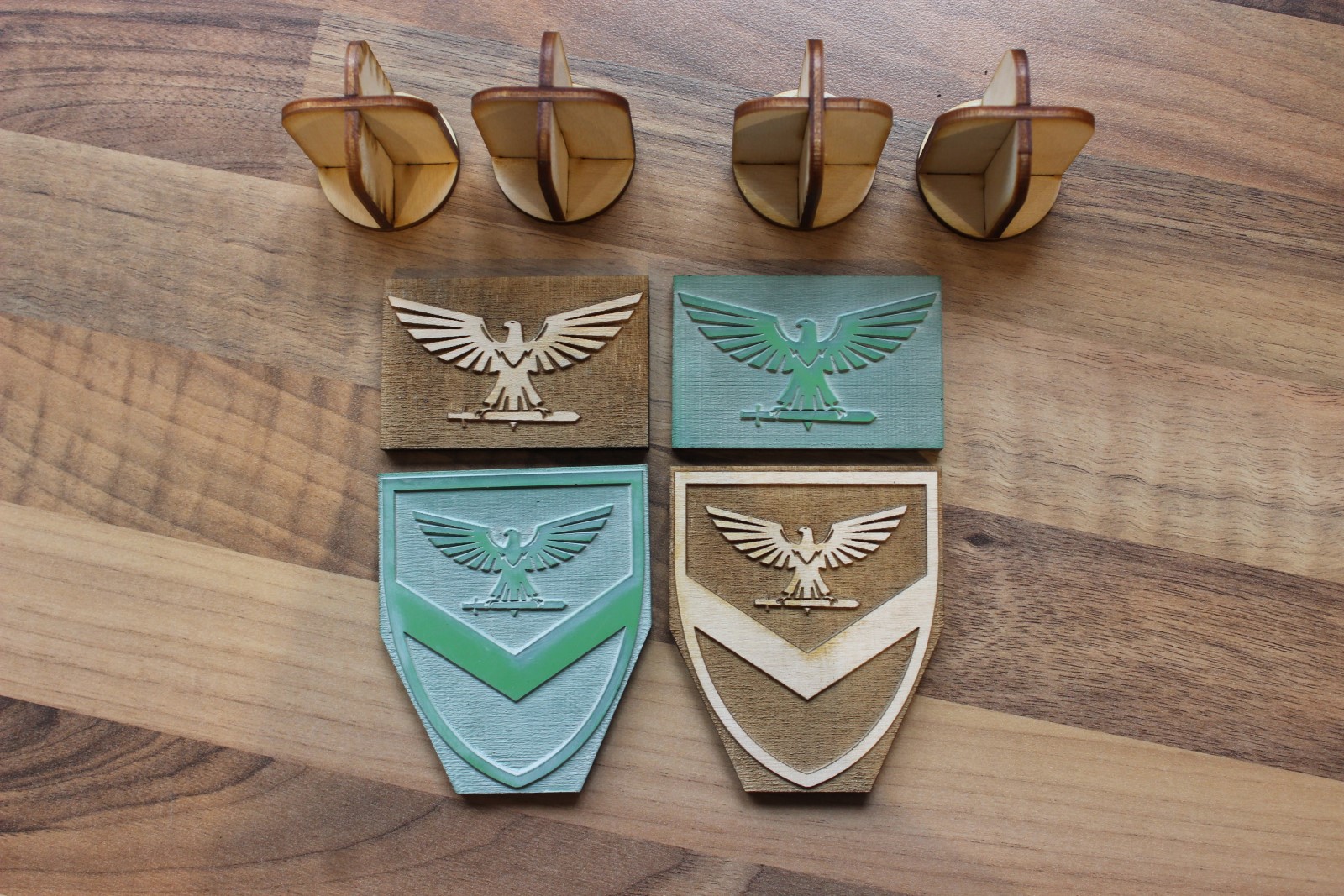

A friend wanted some stamps to ink a pattern onto some material she's working with. We weren't sure if wood or rubber would be better for it so I cut a set of both. The backs were finished will little handles to make them easier to stamp, I left it all unglued so it would be easier to post.
