Stone Tablet Prop

-

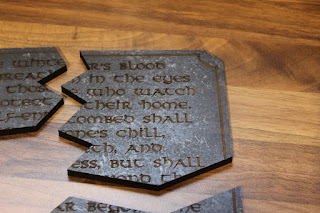

Way back last year I was asked to make a broken stone tablet for an Empire player event. The event happened this weekend so now I'm free to show the prop here. It's made from chunky 6mm mdf, the tablet was painted base grey and masked off with paper tape to reduce the burn marks from engraving. The letters are engraved and outlined to make them stand out against the grey. Finally the slab was marbled using different shades of white and grey colour.


As a prop to be passed around at an event the reverse was also coloured and marbled to the same effect.
