Rainbow Puzzle Box

-


This is a binary sequence puzzle box built from 3mm birch plywood, it uses a Gray code pattern to ultimately align all the dials into a rainbow pattern before the lid can be removed. It's actually a redesign of a puzzle inside Loki's box of Tricks because I thought it would make a cool stand alone puzzle box. The files are available for sale in my Etsy store. (svg here)

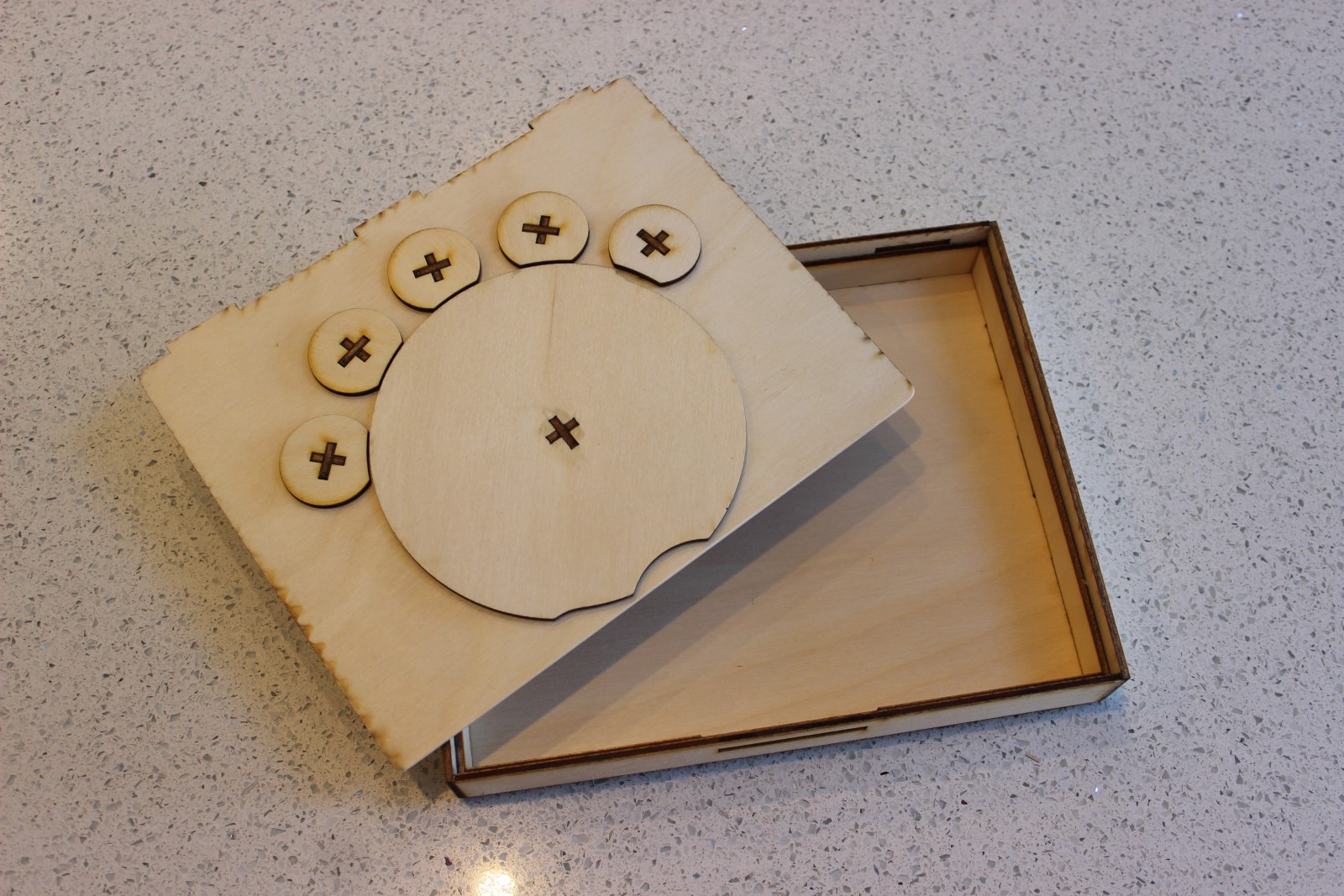

The puzzle consists of five interlocking disks that can only rotate when the disks either side of it are in the correct position to allow it. The large wheel in the middle and the disks on the underside of the lid further restrict the rotation of the disks. The large wheel must be pointed to the disk that is being rotated and the large wheel is in turn restricted from pointing to the smaller disks depending on alignment.
Once all the disks are aligned into the full rainbow the large wheel is completely free to rotate and can be turned to the edge of the box and allows the lid to be removed.


There is a very basic box under the lid, this box could be adjusted to any depth to accommodate any prize to be stored in the puzzle.
