Eggs

-

It's still Easter and I've seen a few laser cut eggs in various places online so I thought I would give ti a try too.


I put the egg on a plate under the laser and held it down with some blue tack.

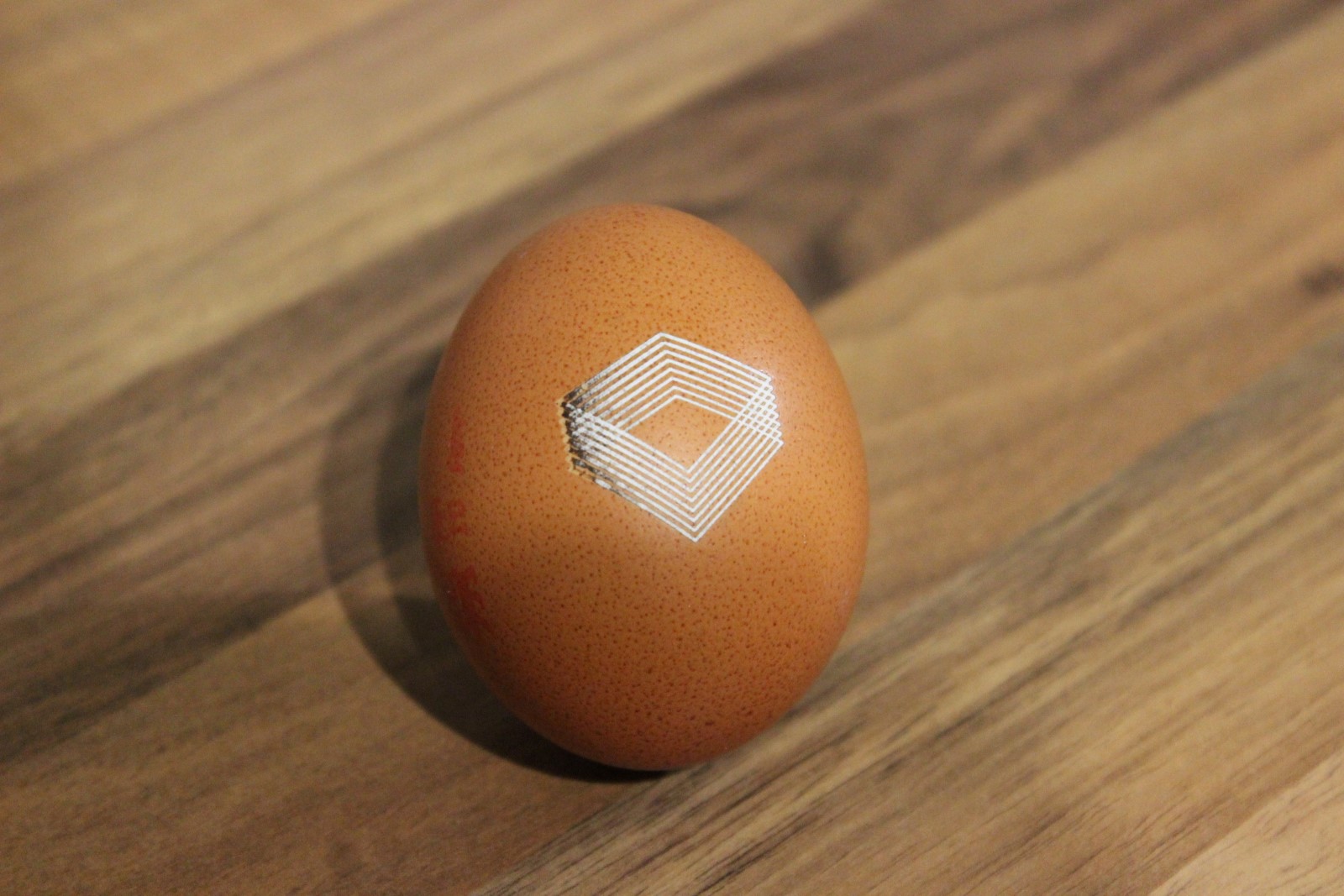

Engraving is not so good, it's hard to mark it the right amount so the rest of these images were done with low power cut lines.


Kim wanted a Good/Bad Egg and while I'm marking up tomorrows breakfast I should probably give Kim what she wanted :)



They look pretty in the egg bowl and I'm sure the kids will love them in the morning.
