Door Strip revamp

-
Door strip between the raised wooden floor and the kitchen tiles.
I made this door strip 18 months ago very much as a test piece. Even then it was showing signs of wear so the fact it lasted all this time was great. The wood had warped a little and it had lifted on one side. The front edge was a little cracked from being stood on (it was too long) and the whole thing was pretty grubby from general use. I reinforced the underside of the strips with some 1.5mm birch (it was only made from 0.8mm originally), I also reinforced the stack of pieces too. The whole thing was sanded, reglued and varnished and it's like new again but this time done as a proper job. Lets see how long it lasts this time around.

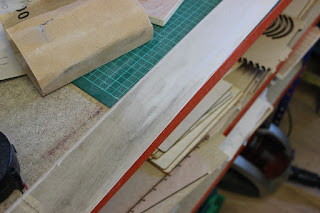

Grubby door strip, halfway through sanding

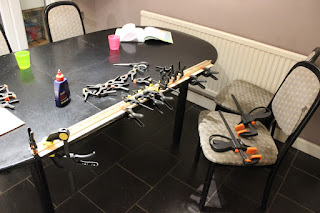

It's so long clamping it flat to the dining room table was the best option.
